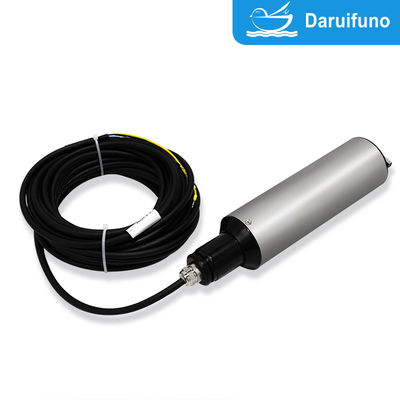

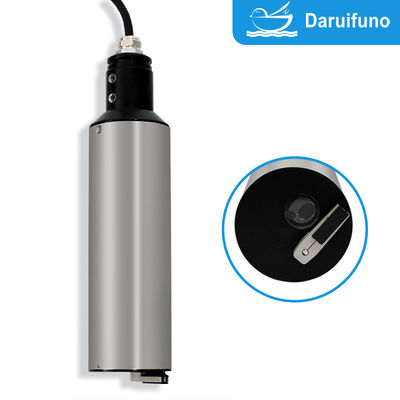

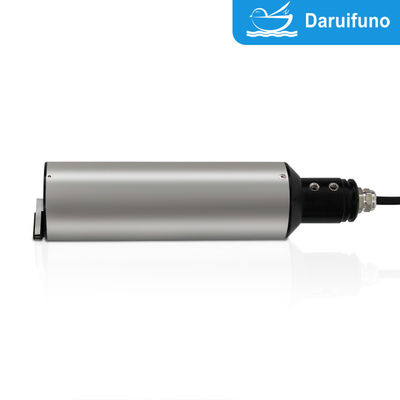

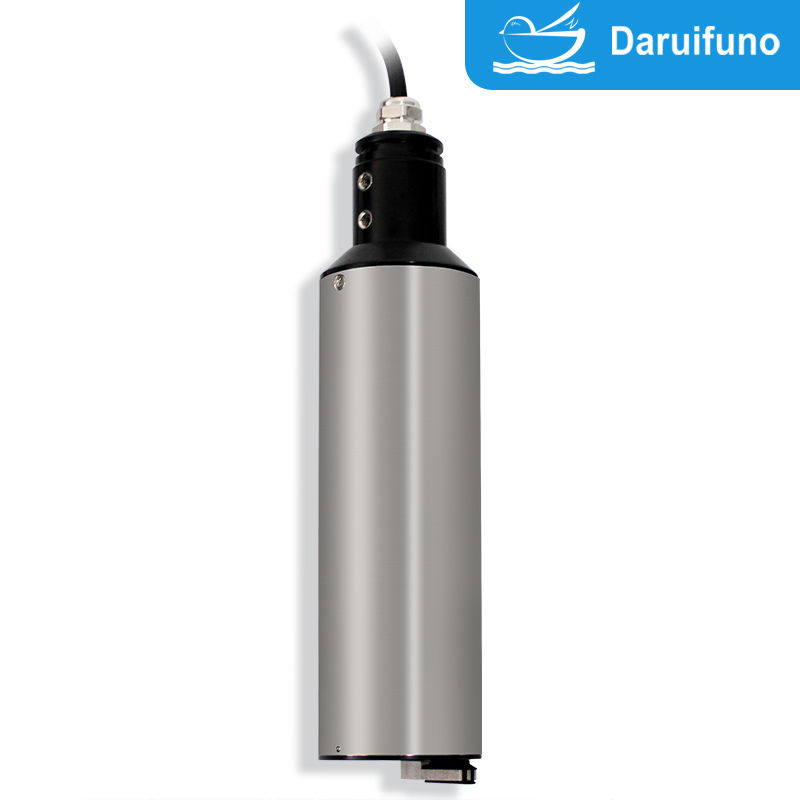

Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush

Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush
Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush

Grote Afbeelding :  Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush

Productdetails:
Plaats van herkomst: China
Merknaam: Daruifuno
Certificering: CE,ISO
Modelnummer: Optu31
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: Bespreekbaar
Prijs: 450~1300USD
Verpakking Details: Karton
Levertijd: 1-15 werkdagen
Betalingscondities: T/t
Levering vermogen: 500 stks/maand
Contact

Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush

beschrijving
Productnaam: Troebelheidsensor Het meten van technologie: Infrarood dubbele straal verspreid licht
Meetbereik: 0.01 ~ 4000ntu Oplossing: ± 2%
Nauwkeurigheid: Beter dan 5,0% van de gemeten waarde of 0,3ntu, welke groter is Mededeling: RS485 Modbus-RTU
Reactietijd: T90 ＜ 60s Werkdruk: ≤4Bar
Operationele temp: 0 ~ 45 ℃ Schaalmateriaal: Standaard SS 316L
Beschermingscijfer: IP68 Kabel: 10 meter
Markeren:

Infrared turbidity sensor with self-cleaning

,

Turbidity analyzer 0.01-4000NTU range

,

Self-cleaning turbidity sensor with brush

High Accuracy Digital Turbidity Probe With Brush For Industrial & Treated Water
The Daruifuno turbidity sensor OPTU311 with self-cleaning, multi-range infrared technology provides fast, accurate, and reliable online monitoring of water quality. Designed for seamless integration into industrial control systems, it's an ideal solution for water treatment and monitoring applications.
Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush 0
Technical Specifications
Sensor Information Infrared Turbidity Sensor
Model OPTU311 (with brush)
Measuring Technology Infrared scattering principle
Measuring Range 0.01~4000NTU
Resolution 0.01NTU
Accuracy ±2% of measured value or ±0.1NTU (whichever is greater)
Communication RS485 MODBUS-RTU
Response Time T90 < 60s
Calibration Method Multi-point calibration; factor correction
Working Pressure ≤4Bar
Sample Flow Rate No dependency
Cleaning Method Equipped with cleaning brush, automatic cleaning under water
Working Temperature 0~45°C (no freezing)
Storage Temperature 0~60°C (no freezing)
Main Material SUS 316L stainless steel (Titanium customized option)
Dimension Φ60mm*L265mm
Mounting Horizontal installation (special accessories required)
Protection Grade IP68
Power Supply 9~24 V DC
Power Consumption 1.5W
Weight 800g
Cable Standard 10 meters
Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush 1 Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush 2
Key Features
  • Built to Last: Robust SUS316L stainless steel construction with IP68 rating withstands harsh industrial environments.
  • Low Maintenance: Integrated self-cleaning brush prevents optical surface fouling for continuous reliable readings.
  • Stable Data Transmission: Electrically isolated interfaces resist electromagnetic interference for uninterrupted operation.
  • Easy Integration: RS485 Modbus RTU protocol enables direct connection to PLCs, DTUs, and industrial systems.
  • Versatile Applications: Ideal for wastewater treatment, waterworks, surface water monitoring, and industrial processes.
The sensor employs an 880nm dual-beam infrared scattered light principle to provide precise turbidity measurements across a wide range (0.01 to 4000 NTU), significantly improving accuracy and stability.
Precision and Speed
Exceptional measurement accuracy (±2% or ±0.1NTU) with rapid T90 response time under 60 seconds enables real-time process control.
Durability and Reliability
SUS 316L stainless steel construction with IP68 protection ensures reliable performance in demanding underwater conditions. Automatic cleaning brush maintains long-term accuracy with minimal maintenance.
Seamless Integration
Modbus communication via RS485 interface ensures compatibility with standard industrial equipment including PLCs and digital acquisition meters.
Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush 3
Application Environments
Water Quality Monitoring
Monitors turbidity changes in tap water, surface water, rivers, lakes, and reservoirs to assess water cleanliness and quality changes.
Wastewater Treatment
Evaluates treatment effectiveness by monitoring turbidity before and after processing to ensure compliance with discharge standards.
Aquaculture
Maintains optimal water conditions by monitoring suspended matter in hydroponic and aquaculture systems.
Environmental Monitoring
Measures water quality in natural water bodies to monitor environmental changes and pollution conditions.
Water Treatment Plants
Ensures drinking water safety by continuously monitoring turbidity throughout the purification process.
Industrial Processes
Provides precise turbidity control for food/beverage production, chemical processing, and other industrial applications requiring water quality management.
Infrared digital turbidity sensors offer convenient, efficient, and accurate measurement for water safety, environmental monitoring, and industrial quality control.
Infrared Turbidity Sensor 0.01-4000NTU with Self-Cleaning Brush 4
