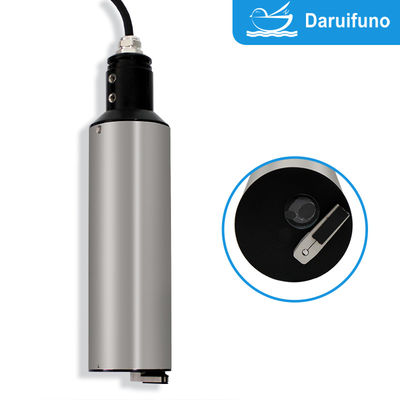

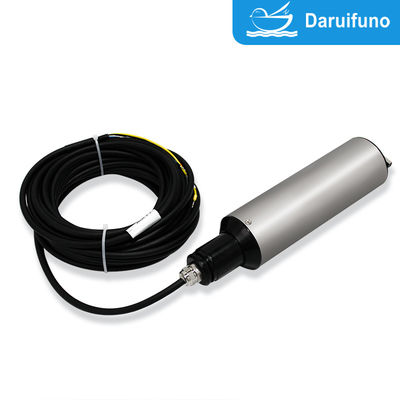

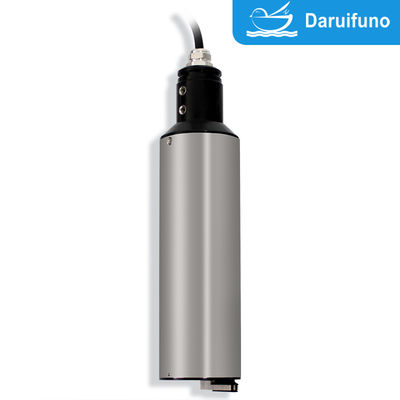

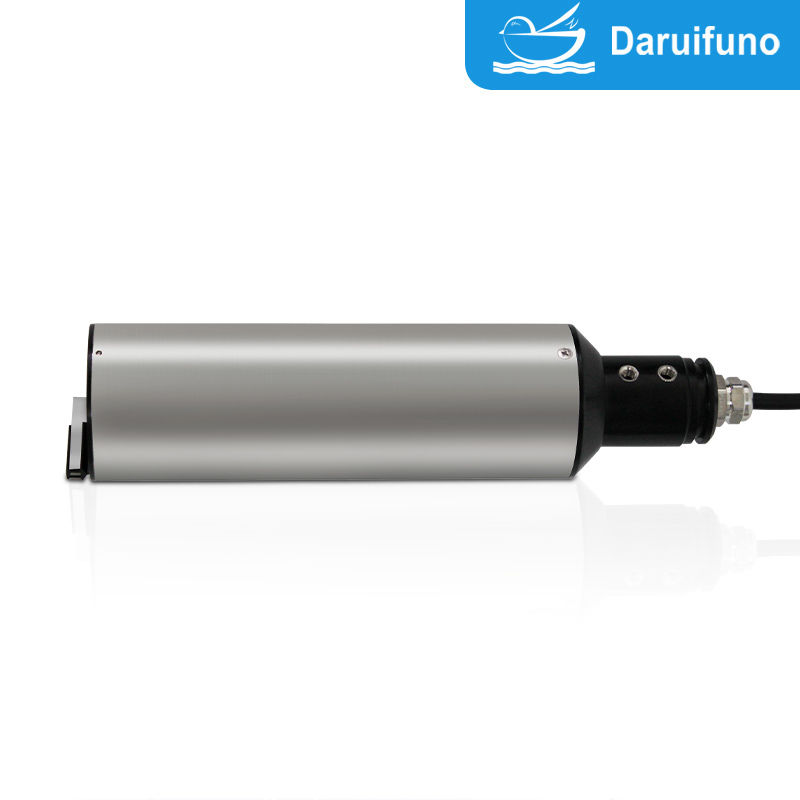

High Accuracy Digital Tubidity Electorde With Brush For Surface Water

High Accuracy Digital Tubidity Electorde With Brush For Surface Water
High Accuracy Digital Tubidity Electorde With Brush For Surface Water High Accuracy Digital Tubidity Electorde With Brush For Surface Water High Accuracy Digital Tubidity Electorde With Brush For Surface Water High Accuracy Digital Tubidity Electorde With Brush For Surface Water

Grote Afbeelding :  High Accuracy Digital Tubidity Electorde With Brush For Surface Water

Productdetails:
Plaats van herkomst: China
Merknaam: Daruifuno
Certificering: CE,ISO
Modelnummer: Optu31
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: Bespreekbaar
Prijs: 450~1300USD
Verpakking Details: Karton
Levertijd: 1-15 werkdagen
Betalingscondities: T/t
Levering vermogen: 500 stks/maand
Contact

High Accuracy Digital Tubidity Electorde With Brush For Surface Water

beschrijving
Productnaam: Troebelheidsensor Het meten van technologie: Infrarood dubbele straal verspreid licht
Meetbereik: 0.01 ~ 4000ntu Oplossing: ± 2%
Nauwkeurigheid: Beter dan 5,0% van de gemeten waarde of 0,3ntu, welke groter is Mededeling: RS485 Modbus-RTU
Reactietijd: T90 ＜ 60s Werkdruk: ≤4Bar
Operationele temp: 0 ~ 45 ℃ Schaalmateriaal: Standaard SS 316L
Beschermingscijfer: IP68 Kabel: 10 meter

High Accuracy Digital Tubidity Electorde With Brush For Surface Water
The Daruifuno turbidity sensor OPTU311 with self-cleaning, multi-range infrared technology provides fast, accurate, and reliable online monitoring of water quality. Designed for seamless integration into industrial control systems, it's an ideal solution for water treatment and monitoring applications.
High Accuracy Digital Tubidity Electorde With Brush For Surface Water 0
Technical Specifications
Sensor Information Infrared Turbidity Sensor
Model OPTU311 (with brush)
Measuring Technology Infrared scattering principle
Measuring Range 0.01~4000NTU
Resolution 0.01NTU
Accuracy ±2% of measured value or ±0.1NTU (whichever is greater)
Communication RS485 MODBUS-RTU
Response Time T90 < 60s
Calibration Method Multi-point calibration; factor correction
Working Pressure ≤4Bar
Sample Flow Rate No dependency
Cleaning Method Equipped with cleaning brush, automatic cleaning under water
Working Temperature 0~45°C (no freezing)
Storage Temperature 0~60°C (no freezing)
Main Material SUS 316L stainless steel (Titanium customized option)
Dimension Φ60mm*L265mm
Mounting Horizontal installation (special accessories required)
Protection Grade IP68
Power Supply 9~24 V DC
Power Consumption 1.5W
Weight 800g
Cable Standard 10 meters

High Accuracy Digital Tubidity Electorde With Brush For Surface Water 1

High Accuracy Digital Tubidity Electorde With Brush For Surface Water 2

Key Features
  • Built to Last: Robust SUS316L stainless steel construction with IP68 rating withstands harsh industrial environments.
  • Low Maintenance: Integrated self-cleaning brush prevents optical surface fouling for continuous reliable readings.
  • Stable Data Transmission: Electrically isolated interfaces resist electromagnetic interference for uninterrupted operation.
  • Easy Integration: RS485 Modbus RTU protocol enables direct connection to PLCs, DTUs, and industrial systems.
  • Versatile Applications: Ideal for wastewater treatment, waterworks, surface water monitoring, and industrial processes.

Precision Turbidity Sensor: Accurate & Reliable Water Monitoring

label:

infrarode Troebelheidssensor,

Troebelheidsanalysator,

de sonde van de afvalwatertroebelheid
